C-Frame Tooling

A SERIES

A Series Punching Units have a standard 8 3/8" shut height and 3 1/2" die height. These heavy duty units are used for a variety of applications, including punching sheet metal up to a 1/4" thickness. Strong stripping springs and rugged holders allow you to punch burr-free holes with minimal maintenance.

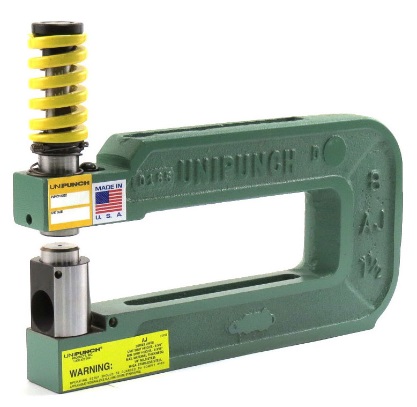

AJ SERIES

AJ Series Punching Units are ideal for punching angles, extrusions, channels, and other formed parts. Units with die adapters and low-cost button dies minimize your replacement die cost and allow you to quickly retool when you change material thicknesses from part to part. Hardened alloy steel die adapters make The AJ Series especially suited for tough punching applications.

AE SERIES

AE Series Punching Units are designed for punching formed parts. Specifically fabricated for punching 3” (4.1 #) and 4” (5.4 #) structural channels, these units are also ideal for punching I-beams, angles, structural shapes and extrusions. For punching channel, select the angled die. For punching flat stock, select the standard flat die. AE Units are commonly modified to accommodate irregular shapes and extrusions.

AH SERIES

AH Series Punching Units have a standard 8 3/8" shut height and 3 1/2" die height. These heavy duty units feature multiple springs that “strip” the Punches from mild steel as thick as 1/2". They incorporate hardened steel bushings that provide long life and accurate rigid alignment of punches.

AHD SERIES

AHD Series Punching Units are specifically designed for punching holes in stainless steel as thick as 1/4". These heavy duty units feature punches made from wear-resistant D2 tool steel. Shear on the punch tip along with a back tapered design, reduce stripping pressure. For tough stainless steel punching applications, UniPunch provides the high performance AHD Series Units.

AD SERIES

The AD-4 Punching Units have a standard 8 3/8" shut height and 3 1/2" die height. These heavy duty units feature multiple springs that “strip” the Punches from mild steel as thick as 3/4". They incorporate hardened steel bushings that provide long life and accurate rigid alignment of punches.

AJD SERIES

AJD Series Punching Units are specifically designed for punching holes in stainless steel as thick as 1/4". These heavy duty units feature punches made from wear-resistant D2 tool steel. Shear on the punch tip along with a back tapered design, reduce stripping pressure. For tough stainless steel punching applications, UniPunch provides the high performance AJD Series Units.

B SERIES

B Series Punching Units are designed for press equipment environments with limited die space. With a standard 5 1/2" shut height and 2 19/32" die height, these compact units are for lighter fabrication. Strong stripping springs and rugged holders insure uniform holes.

FCU SERIES

Feed Clearance Units are ideal for punching formed parts. These versatile units have extra wide feed openings, allowing you to front feed channels, angles, extrusions or other formed parts. FCU units are commonly modified to accommodate odd-shaped parts.

FTA SERIES

FTA Series Punching Units are part of an unlimited throat depth hole punching system. Mounted in an adjustable box assembly, this system allows you to “feed through” and punch large pieces of sheet metal.

G SERIES

G-3/4 Hole Punching Units are designed for close center-to-center hole punching in extrusions, roll formed parts and sheets used by Aluminum Extrusion Fabricators, Storm Window Manufacturers and the Aircraft Industry. Pedestal dies can be modified to accommodate irregular shapes and extrusions.

HZ SERIES

HZ Series Punching Units are designed for horizontal punching of holes in the vertical sides of flanges, rims and formed parts. In operation, the Press Ram depresses the Vertical Plunger forcing the punch horizontally through the material. On the up stroke of the Ram, the Stripping Spring removes the punch from the work piece. Equipped with a Pilot Pin in the base of the holders, these units are accurately located and set up on Templates to produce parts with the first stroke of the Press Ram. HZ Units can also be modified for mandrel tube punching applications.

OA SERIES

The OA-6 Punching Units have a standard 8 3/8" shut height and 3 1/2" die height. These heavy duty units feature multiple springs that “strip” the Punches from mild steel as thick as 3/8". They incorporate hardened steel bushings that provide long life and accurate rigid alignment of punches.

TP SERIES

Various Tube Punching Units are designed for punching round or square tubing and pipe. The tubing is supported on all sides during punching. The Units provide straight through holes.

4000 SERIES

The UniPunch 4000 Series Radius Tool uses a modified C-Frame holder that allows the production of eight different radii. This Unit is furnished complete with holder, built in squaring guides and two interchangeable Punch and Die sets. Sizes can be selected simply by rotating the Punch and Die Assembly. Gaging and die clearance are preset and require no adjustment. Metric radius sizes are available.

5300 SERIES FLAT STOCK CUTOFF UNIT

UniPunch 5300 Cutoff Units are a self-contained two post die set with a compatible shut height with UniPunch B Series units. These units can be mounted in a Press or Press Brake adjacent to existing UniPunch Tooling or stand-alone cut to length applications up to 8" wide x 10 GA./.134" (3.4 mm) thick steel max. Spare punch and die steels can be supplied with a new unit.

6300 SERIES FLAT STOCK CUTOFF UNIT

UniPunch 6300 Cutoff Units are a self-contained two post die set with a compatible shut height with UniPunch A Series units. These units can be mounted in a Press or Press Brake adjacent to existing UniPunch Tooling or as a stand-alone cut to length tool for applications up to 8" wide x 1/4" (3.4 mm) thick steel max. Spare punch and die steels can be supplied with a new unit.

6500 SERIES ANGLE CUTOFF UNIT

The UniPunch 6500 Angle Cutoff Unit is a self-contained two post die set with a compatible shut height with UniPunch A Series units. This unit can be mounted in a Press or Press Brake adjacent to existing UniPunch Tooling or as a stand-alone cut to length tool for angle cutoff applications on structural angle iron up to 2” x 2” x 1/4" max. Spare punch and die steels can be supplied with a new unit.

7180 CORNER NOTCH UNIT PART #: 7180

The B Series #7180 Corner Notching Unit is designed for press equipment environments with limited die space. With a standard 5 1/2" shut height and 2 19/32" die height, this compact unit is for lighter fabrication. Adjustable gauging assemblies are available. Spare punch and die steels can be supplied with a new unit.

CORNER NOTCHING, EDGE NOTCHING, VEE NOTCHING

UniPunch provides a variety of standard and custom notching units.  Most units have standard shut heights and can be used alongside standard UniPunch C-frame tooling.
