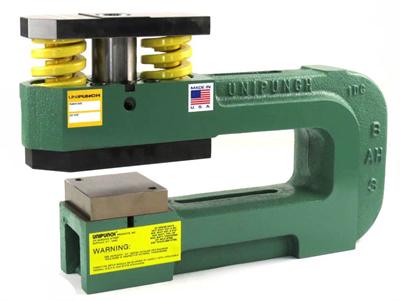

AH Series

AH-2 1/2BD



Die Height 3.5 in Material Feed Clearance 0.625 in
Max. Material Thickness (Aluminum) 0.5 in Max. Material Thickness (Copper or Brass) 0.5 in
Max. Material Thickness (Mild Steel) 0.5 in Max. Material Thickness (Stainless Steel) 0.15625 in
Max. Punch Diameter (Absolute) 1 in Max. Square 0.707 in
Min. Die Clearance 0.018 in Min. Punch Diameter (Absolute) 0.25 in
Min. Shape Dimensions 0.125 in Min. Shut Height 8.1875 in
Operating Shut Height 8.375 in Unit Open Height 9.375 in

AH-2 1/2H



Die Height 3.5 in Material Feed Clearance 0.625 in
Max. Material Thickness (Aluminum) 0.5 in Max. Material Thickness (Copper or Brass) 0.5 in
Max. Material Thickness (Mild Steel) 0.5 in Max. Material Thickness (Stainless Steel) 0.1562 in
Max. Punch Diameter (Absolute) 1 in Max. Square 0.707 in
Min. Die Clearance 0.018 in Min. Punch Diameter (Absolute) 0.25 in
Min. Shape Dimensions 0.125 in Min. Shut Height 8.1875 in
Operating Shut Height 8.375 in Unit Open Height 9.375 in

AH-3



Die Height 3.5 in Material Feed Clearance 0.625 in
Max. Material Thickness (Aluminum) 0.5 in Max. Material Thickness (Copper or Brass) 0.5 in
Max. Material Thickness (Mild Steel) 0.5 in Max. Material Thickness (Stainless Steel) 0.1563 in
Max. Punch Dia. in 1/2" M.S. 1.125 in Max. Punch Dia. in 1/4" M.S. 1.375 in
Max. Square 0.972 in Min. Die Clearance 0.018 in
Min. Material Thickness (Absolute) 0.0937 in Min. Punch Diameter (Absolute) 0.375 in
Min. Shape Dimensions 0.125 in Min. Shut Height 8.1875 in
Operating Shut Height 8.375 in Unit Open Height 9.625 in

AH-3 1/2



Die Height 3.5 in Material Feed Clearance 0.625 in
Max. Material Thickness (Aluminum) 0.5 in Max. Material Thickness (Copper or Brass) 0.5 in
Max. Material Thickness (Mild Steel) 0.5 in Max. Material Thickness (Stainless Steel) 0.15625 in
Max. Punch Dia. in 1/2" M.S. 1.25 in Max. Punch Dia. in 1/4" M.S. 2 in
Max. Square 1.414 in Min. Die Clearance 0.018 in
Min. Material Thickness (Absolute) 0.0937 in Min. Punch Diameter (Absolute) 0.5 in
Min. Shape Dimensions 0.125 in Min. Shut Height 8.1875 in
Operating Shut Height 8.375 in Unit Open Height 9.375 in

AH-6



Die Height 3.5 in Material Feed Clearance 0.625 in
Max. Material Thickness (Aluminum) 0.5 in Max. Material Thickness (Copper or Brass) 0.5 in
Max. Material Thickness (Mild Steel) 0.5 in Max. Material Thickness (Stainless Steel) 0.15625 in
Max. Punch Dia. in 1/2" M.S. 1.5 in Max. Punch Dia. in 1/4" M.S. 3 in
Max. Punch Dia. in 3/8" M.S. 2 in Max. Square 2.121 in
Min. Die Clearance null in Min. Material Thickness (Absolute) 0.0937 in
Min. Punch Diameter (Absolute) 1 in Min. Shape Dimensions 0.1875 in
Min. Shut Height 8.1875 in Operating Shut Height 8.375 in
Unit Open Height 9.625 in

AHD-2 1/2 BD



Die Height 3.5 in Material Feed Clearance 0.0625 in
Max. Material Thickness (Stainless Steel) 0.25 in Max. Punch Diameter (Absolute) 0.875 in
Max. Square 0.618 in Min. Die Clearance 0.018 in
Min. Punch Diameter (Absolute) 0.2812 in Min. Shape Dimensions 0.125 in
Min. Shut Height 8.1875 in Operating Shut Height 8.375 in
Unit Open Height 9.375 in

AHD-2 1/2 H



Die Height 3.5 in Material Feed Clearance 0.625 in
Max. Material Thickness (Stainless Steel) 0.25 in Max. Punch Diameter (Absolute) 0.875 in
Max. Square 0.618 in Min. Die Clearance 0.018 in
Min. Material Thickness (Absolute) 0.0937 in Min. Punch Diameter (Absolute) 0.2812 in
Min. Shape Dimensions 0.125 in Min. Shut Height 8.1875 in
Operating Shut Height 8.375 in Unit Open Height 9.375 in

AHD-3



Die Height 3.5 in Material Feed Clearance 0.625 in
Max. Material Thickness (Stainless Steel) 0.25 in Max. Punch Diameter (Absolute) 1.125 in
Max. Square 0.795 in Min. Die Clearance 0.018 in
Min. Material Thickness (Absolute) 0.0937 in Min. Punch Diameter (Absolute) 0.375 in
Min. Shape Dimensions 0.125 in Min. Shut Height 8.1875 in
Operating Shut Height 8.375 in Unit Open Height 8.625 in

AHD-3 1/2



Die Height 3.5 in Material Feed Clearance 0.625 in
Max. Material Thickness (Stainless Steel) 0.25 in Max. Punch Diameter (Absolute) 1.5 in
Max. Square 1.06 in Min. Die Clearance 0.018 in
Min. Material Thickness (Absolute) 0.0937 in Min. Punch Diameter (Absolute) 0.5 in
Min. Shape Dimensions 0.125 in Min. Shut Height 8.1875 in
Operating Shut Height 8.375 in Unit Open Height 9.375 in
