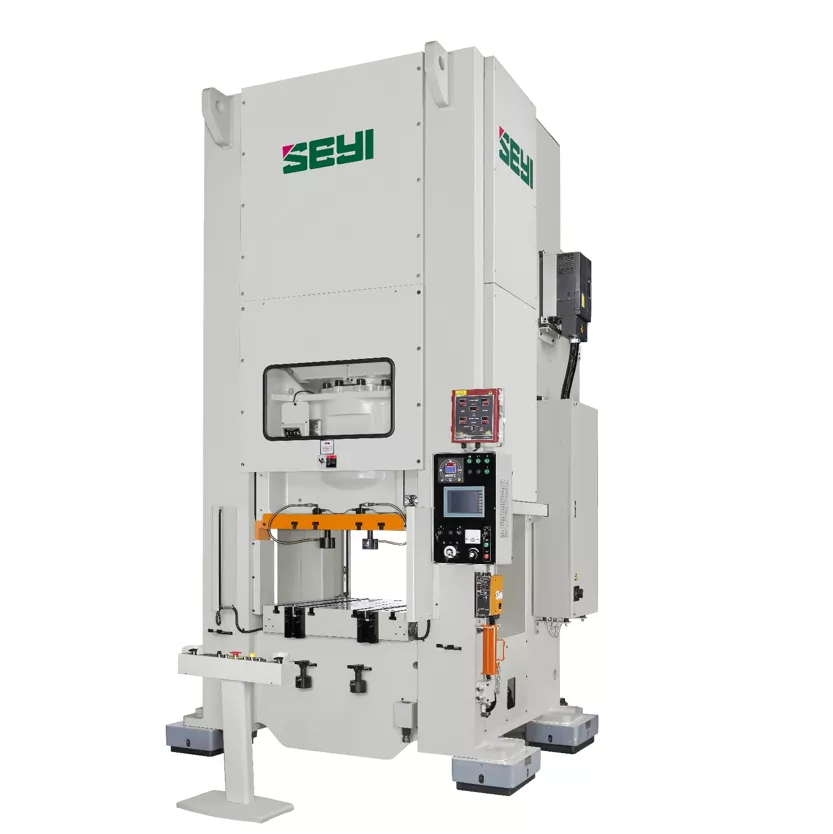

HEAVY STAMPING LINK PRESS

seyi_heavy_stamping_link_press

    • Produce well for over 6mm thick plate stamping.Link motion with a reduced touch speed and caused less vibration, noise and extended tooling life.

    • Provide stable quality by eliminating spring back problem in bending process.

    • Increased productivity by up to 40% compared to conventional presses.

    • An 8-point square slide guide that with limited gib clearance.

SM1 300-800 DESCRIPTION

Model SM1-300 SM1-500 SM1-650 SM1-800
Type S H S H S S
Capacity kN 3000 5000 6500 8000
Stroke Length mm 250 120 300 150 300 300
Stroke per Minute SPM 20~50 40~70 20~40 30~55 20~35 15~30
Tonnage Rating Point mm 13 6.5 13 6.5 13 13
Die Height mm 600 400 650 400 700 750
Slide Adjustment mm 150 150 150 150
Slide Area(LRxFB) mm 1000 x 900 1200 x 1100 1300 x 1200 1500 x 1300
Bolster Area(LRxFB) mm 1000 x 1000 1200 x 1200 1300 x 1300 1500 x 1500
Bolster Thickness mm 180 250 250 250
Bolster Height(w/ Mounts) mm 1060 1060 1100 1200
Max. Upper Die Weight Ton 0.5 1 1.5 2
Main Motor kW×P 37 x 4 45 x 4 55 x 4 75 x 4
Slide Adjustment Motor kW×P 1.5 x 4 1.5 x 4 2 x 6 2 x 6
Window Opening(FBxUD)  mm 600 x 450 600 x 300 700 x 550 700 x 400 800 x 600 850 x 650
Press Height mm 4600 4300 4800 4400 5100 6000
Position of Anchor Bolts mm 2000 x 1310 2200 x 1345 2500 x 1650 2980 x 1910
Floor Space Required mm 2370 x 2650 2570 x 2925 2870 x 3380 3350 x 3690
Required Air Pressure MPa 0.55

※ This specification is subject to change without notice.
