UniPunch
Press Mounting Equipment

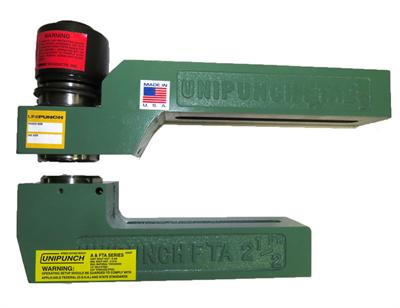

FTA Series
FTA-1 1/2
| Die Height | 3.5 in | Material Feed Clearance | 0.4375 in |
|---|---|---|---|
| Max. Material Thickness (Mild Steel) | null in | Max. Material Thickness (Stainless Steel) | 0.0937 in |
| Max. Punch Diameter (Absolute) | 0.625 in | Max. Square | 0.441 in |
| Min. Die Clearance | 0.006 in | Min. Material Thickness (Absolute) | 0.031 in |
| Min. Punch Diameter (Absolute) | 0.125 in | Min. Shape Dimensions | 0.0937 in |
| Min. Shut Height | 8.1875 in | Operating Shut Height | 8.375 in |
| Unit Open Height | 9.125 in | ||
FTA-1 1/4
| Die Height | 3.5 in | Material Feed Clearance | 0.4375 in |
|---|---|---|---|
| Max. Material Thickness (Mild Steel) | 0.25 in | Max. Material Thickness (Stainless Steel) | 0.0937 in |
| Max. Punch Diameter (Absolute) | 0.4375 in | Max. Square | 0.309 in |
| Min. Die Clearance | 0.006 in | Min. Material Thickness (Absolute) | 0.031 in |
| Min. Punch Diameter (Absolute) | 0.0937 in | Min. Shape Dimensions | 0.0937 in |
| Min. Shut Height | 8.1875 in | Operating Shut Height | 8.375 in |
| Unit Open Height | 9.125 in | ||
FTA-2
| Die Height | 3.5 in | Material Feed Clearance | 0.4375 in |
|---|---|---|---|
| Max. Material Thickness (Mild Steel) | 0.25 in | Max. Material Thickness (Stainless Steel) | 0.0937 in |
| Max. Punch Diameter (Absolute) | 0.875 in | Max. Square | 0.618 in |
| Min. Die Clearance | 0.006 in | Min. Material Thickness (Absolute) | 0.031 in |
| Min. Punch Diameter (Absolute) | 0.1875 in | Min. Shape Dimensions | 0.125 in |
| Min. Shut Height | 8.1875 in | Operating Shut Height | 8.375 in |
| Unit Open Height | 9.125 in | ||
FTA-2 1/2
| Die Height | 3.5 in | Material Feed Clearance | 0.4375 in |
|---|---|---|---|
| Max. Material Thickness (Mild Steel) | 0.25 in | Max. Material Thickness (Stainless Steel) | 0.0937 in |
| Max. Punch Diameter (Absolute) | 1.5 in | Max. Square | 1.06 in |
| Min. Die Clearance | 0.006 in | Min. Material Thickness (Absolute) | 0.031 in |
| Min. Punch Diameter (Absolute) | 0.2812 in | Min. Shape Dimensions | 0.125 in |
| Min. Shut Height | 8.1875 in | Operating Shut Height | 8.375 in |
| Unit Open Height | 9.125 in | ||
